MiniMax Ariel™

€500.00 €413.22

Combo Anti-collision / Steady LED light – Red or White or Amber or Infrared LED color

- +

Backorder:Usually 5-10 days
SKU AVE-PSASW-D01
Description





MiniMax Ariel Combo Anti-collision / Steady LED light – Red or White or Amber or Infrared LED color


MiniMax Ariel - Anti-collision light

Beacon LED light (Steady and Strobe) – Red, White, Amber or Infrared

Developed originally at the request of the world’s leading UAV manufacturers, all of which now utilize Aveo lighting, the MiniMax Ariel™ is a compact powerhouse of hemispheric light. It is also a great anti-collision light to use on upper and lower fuselage in combination with Aveo DayLite™ wing lights due to its incredibly small footprint.

MiniMax Ariel™ is available in white, amber, red or infrared LED color.

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

Technical data

Specification

Dimensions: See drawing on the right
Weight: 53 g /  1.87 oz
Operating Voltage Range: 9-36 V DC
Input Current - strobe:
Input Current - steady:
2.0 A (@12V)
0.22 A (@12V)
Output Power - strobe:
Output Power - steady:
24 W
2.6 W
Flash Rate: 100/50 + 50/50 + 50/950(mS)
Ambient Temperature: from -40°C to +75°C
from -40°F to +167°F
Overheat Protection: Yes (+85°C / +185°F)
Transient Voltage: 60V
Under-voltage Lockout: 9V, not more
Over-voltage Lockout: 36V, not less
Waterproof, Dust-proof, Shock-proof, Vibration-proof: Yes
Wiring: Teflon insulation, 500V
Wire length from base of unit 254mm (10") min.
Red:Yellow:Black:Blue: VCCP - AWG 20,
Positive power supply line for position
VCCS - AWG 20,
Positive power supply line for strobe
GND - AWG 20,
Common negative power supply line
SYNC - AWG 20,
Synchronization line
Note: Performance at 25°C and 88% DC-DC efficiency

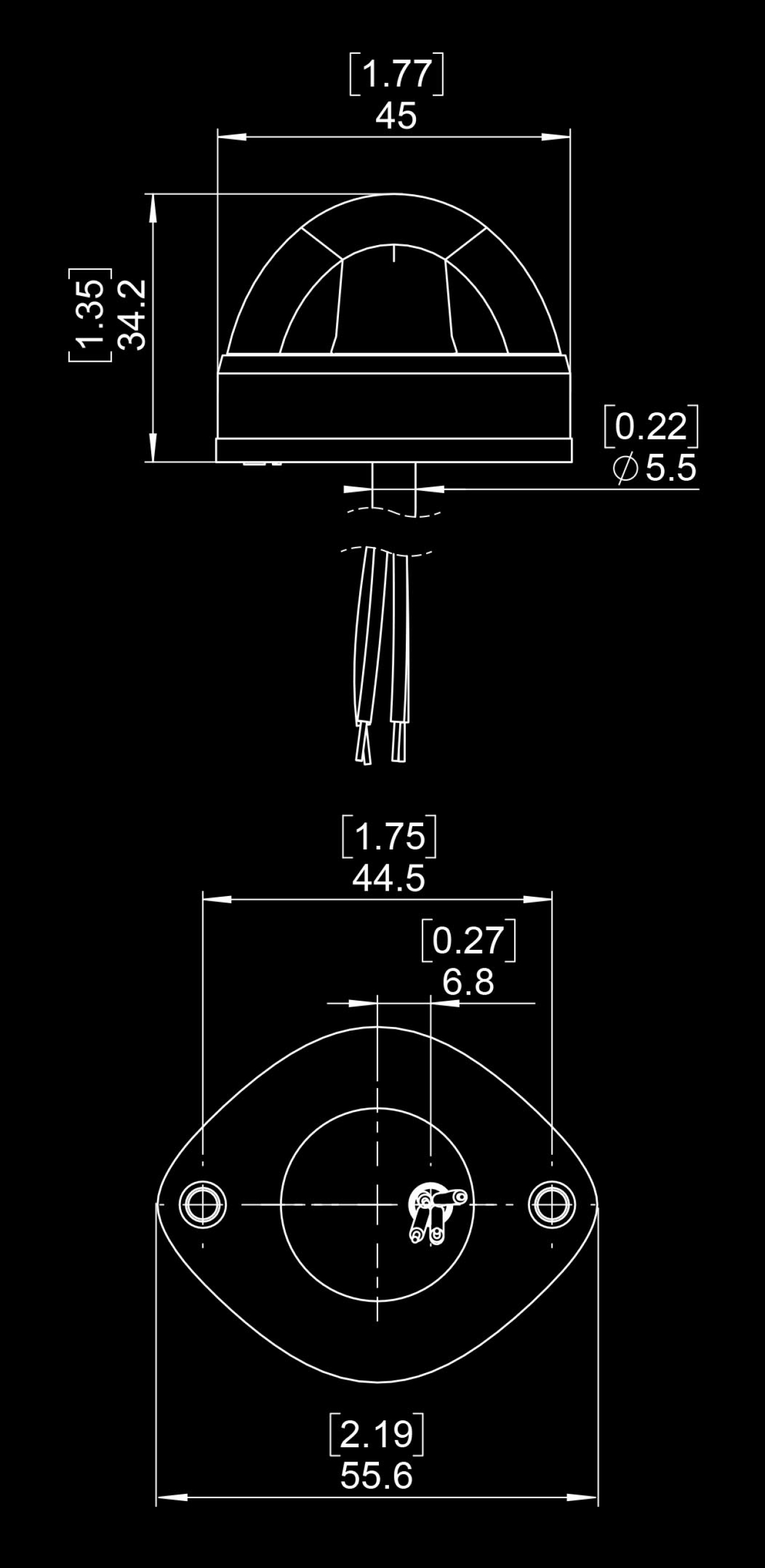

Drawing

MiniMax Ariel - drawing
